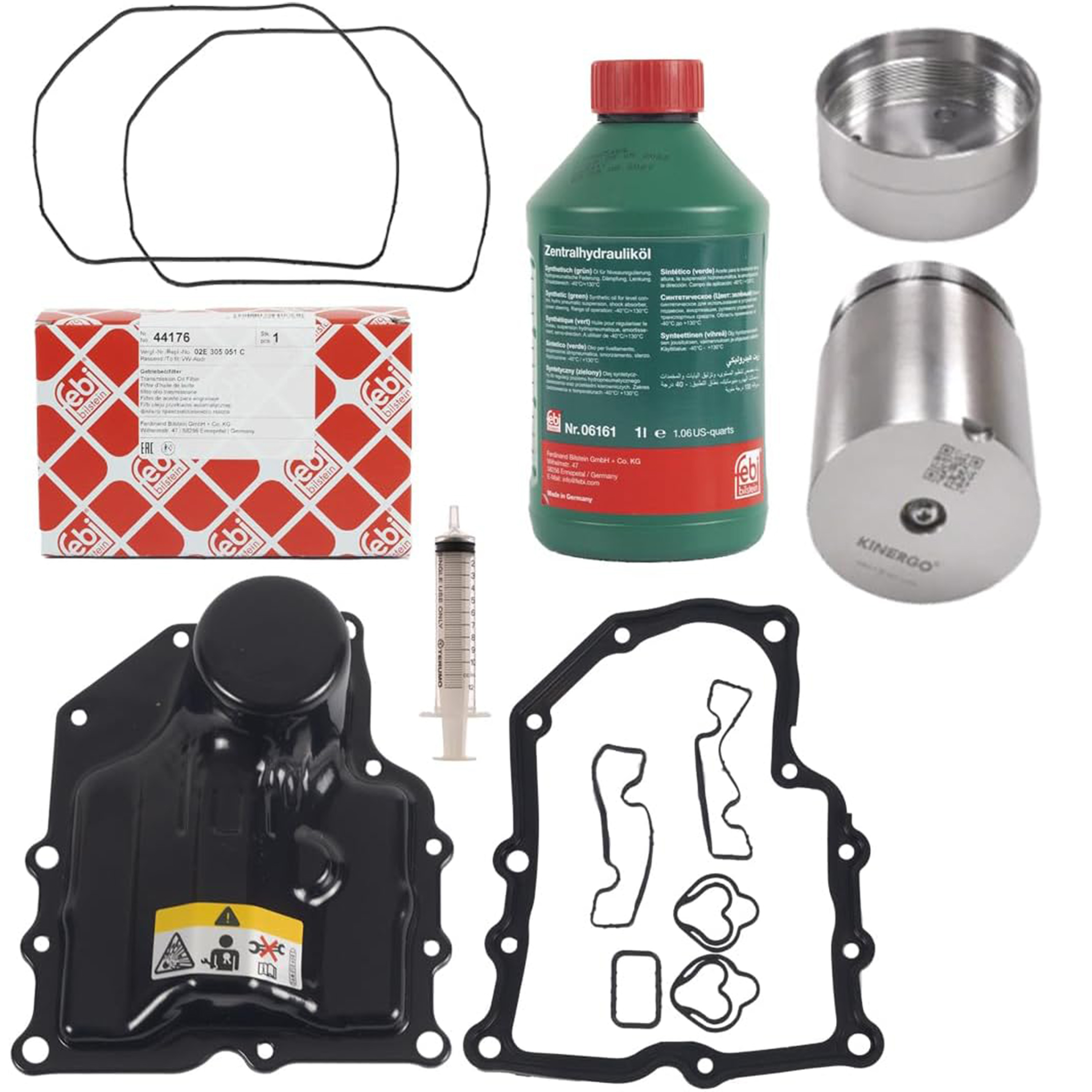

Complete DSG Mechatronic Gearbox Accumulator Repair Kit for Volkswagen/Audi/Skoda/Seat

Name: Complete DSG Mechatronic Gearbox Accumulator Repair Kit for Volkswagen/Audi/Skoda/Seat
SKU: X8R0187
Price: 284.99 GBP
Availability: InStock

£284.99 £237.49

In stock

SKU

X8R0187

For dispatch on 16/01/2025, order this item in the next

Fill in your delivery details to check available shipping options and calculate rates for this product

Country

Zip/Postal Code

PRODUCT DOWNLOADS

DSG-0AM-Mechatronic-Unit-7-Speed-Gearbox-Hydraulic-accumulator-repair-kit-replacement.pdf

(Size: 1.3 MB)

Skip to the end of the images gallery

Complete DSG Mechatronic Gearbox Accumulator Repair Kit for Volkswagen/Audi/Skoda/Seat

Skip to the beginning of the images gallery

More Information

More Information
Ebay Text 2	DSG / 0AM Mechatronic Unit 7 Speed Gearbox Hydraulic Accumulator Repair Kit Replacement Overhaul Leaking Crack Repair Fix VW AUDI SKODA SEAT” SYMPTOMS OF FAULT VW 06079 GENERIC P17BF. VAG 006079/10902/10903, P17BF, Hydraulic pump - play protection. VW 06300 GENERIC P189C. VAG 006300, P189C, Function restriction due to insufficient pressure build-up.P1895, Reduced function because of pressure drop. Loss of power (gone into neutral), no gears can be selected, hydraulic pump runs constantly, you can see hydraulic fluid bubbling/rising out of the breather, flashing spanner icon where gear number usually shows. THE FAULT The accumulator mounting within the DSG unit fails causing these faults Within the DSG Mechatronic unit, the hydraulic pump pushes oil through the filter towards the pressure accumulator which provides the system with oil pressure when the pump is switched off. The cast metal part that the accumulator seats in to is too thin for the pressure exerted, this causes this part to crack and for the system to lose pressure causing the mechatronic unit to fail. To replace the cast metal part is a very time-consuming job and would only fail again in future. THE SOLUTION Our unique design repair restores full function to the DSG unit Our unique repair kit allows you to repair the failed cast block. Our accumulator base mounts to the cast block restoring full function, our improved design accumulator simply then screws in place, providing a full-term repair for this common fault. For some types of transmission, the repair is possible in situ – provided the mechatronic sump can be removed in situ. Even if this isn’t possible and the unit has to be removed our repair is still far simpler than replacing the cast block which requires complete disassembly of the Mechatronic unit. No programming is required pre or post installation. After the repair, pressure is restored and normal operation resumes. UK stock Quality Machined Part Next day delivery available Save the cost of a complete new block DSG Mechatronic 7 Speed Gearbox Hydraulic Accumulator Repair Kit Leak Fix VW AUDI SKODA SEAT Install - YouTube Video will open in a new window Using the eBay App? Paste link into a browser window: [isdntekvideo] Download Instruction Guide VEHICLES AFFECTED The below is for guidance only, please check before buying that you have a DSG7 speed gearbox, any doubts let us know your VIN before purchase and we can look up to be sure. Compatible with following gearboxes:DSG 7 gearbox models 0AM 325 025 M Z1L 0AM 325 025 M Z2B 0AM 325 025 M Z2N 0AM 325 025 K Z6D 0AM 325 025 K Z6C 0AM 325 025 K Z6T Associated part numbers: 0AM 927 769 D 0AM 927 769 K 0AM 927 769 G 0AM 325 025 D 0AM 325 025 H 0AM 325 065 N 0AM 325 025 J 0AM 325 065 L 0AM 325 065 S DQ200 DSG Please check your vehicle has a DSG 7 speed gearbox. Audi A1 2008-2011 1.4l 1.6l 7 Speed Audi A1 (8X) with 7-speed dual clutch gearbox Model Years 2011-2016 Audi A3 (8P, 8V) with 7-speed dual clutch gearbox Model Years 2008-2016 Audi Q3 2011 1.4l 1.6l 1.8l 7 speed Audi TT (8J) with 7-speed dual clutch gearbox Model Years 2012-2016 SEAT Altea / XL 2009-2011 1.6l 1.8l 7 speed SEAT Ibiza 2009-2011 1.2l 1.4l 1.6l 7 speed SEAT Leon 2007-2011 1.8l 7 speed Skoda Fabia 2010- 2011 2013-2015 7 speed Skoda Modela 2011 1.4l 1.6l 7 speed Skoda Octavia Model Years 2009-20157 speed Skoda Superb Model Years 2008-2015 7 speed Skoda Rapid Model Years 2014-2015 7 speed Skoda Roomster Model Years 2013-2014 7 speed Skoda Yeti Model Years 2013-2015 7 speed Volkswagen Beetle / convertible Model Years 2011-2015 7 speed Volkswagen Bora 2010-2011 1.4l 1.6l 7 speed Volkswagen Caddy Model Years 2010-2015 7 speed Volkswagen Golf / Golf Plus Model Years 2007-2015 7 speed Volkswagen Jetta / Jetta Wagon Model Years 2008-2015 7 speed Volkswagen Lavida 2010-2011 1.4l 1.6l 7 speed Volkswagen Passat Model Years 2008-2015 7 speed Volkswagen Polo Model Years 2007-2015 7 speed Volkswagen Sagitar 2009-2011 1.4l 7 speed Volkswagen Scirocco 2008-2011 1.4l 7 speed Volkswagen Sharan 2010-2011 1.4l 7 speed Volkswagen Tiguan 2011 1.8l 7 speed Volkwagen Touran 2010-2011 1.4l 1.6l 1.8l 7 speed And other models with a DSG 7 speed gearbox. YOU WILL RECEIVE 1 x Replacement accumulator (complete with o ring) 1 x Accumulator housing / cast block adapter (complete with o ring) 1x Accumulator spanner. 1x Mechatronic unit sump gasket 1x Mechatronic unit to gearbox gasket 1x Syringe to refill Mechatronic unit with hydraulic fluid (through vent) 1x 1ltr Hydraulic fluid to refill Mechatronic unit 1x Replacement sump for the Mechatronic unit 1x Oil filter (used if draining down gearbox to remove Mechatronic unit)
