Door lock bouncing up and down? Finding it increasingly difficult to lock your Mercedes?

Models Affected:



£8.99

Description

Additional Information

Ebay Text
Ebay Text 2 No
Model Affected No
The Problem
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT

The poor quality springs within your door lock mechanisms wear and can even snap causing these symptom




MERCEDES C E CLK CLASS W203 W211 W209 DOOR LOCK ACTUATOR REPAIR KIT 4 SPRINGS Part Numbers: 2037200135 203720043 2037300135 2037300235 2037200335 2037202035 2037300335 2037300435 2037201935 2037200235 2117300535 2117300635 2117200335 2117200435 2117300935 211730103 2117200535 2117200635 2117300735 2117300835 2117200735 2117200835 2117301135 2117301235 2117200935 21172010355 2117201335 2117201435 2117201135 2117201235 Mercedes CLK W209 A209 2002-2009 Mercedes E Class W211 2002-2009 Mercedes C Class W203 2000-2007 Lock Door Actuator New Locking Central Vw Brand Left Front Rear Repair Right Seat Mercedes Skoda Class Mechanism Kit





The Springs within the door lock actuator mechanisms deteriorate over time, the OEM spring is made from cheap metal which wears quickly, this wear leads to the symptoms noted above.



The Solution

Fit our improved design Stainless Steel Springs and restore your door locks to full health for good.





MERCEDES C E CLK CLASS W203 W211 W209 DOOR LOCK ACTUATOR REPAIR KIT 4 SPRINGS Part Numbers: 2037200135 203720043 2037300135 2037300235 2037200335 2037202035 2037300335 2037300435 2037201935 2037200235 2117300535 2117300635 2117200335 2117200435 2117300935 211730103 2117200535 2117200635 2117300735 2117300835 2117200735 2117200835 2117301135 2117301235 2117200935 21172010355 2117201335 2117201435 2117201135 2117201235 Mercedes CLK W209 A209 2002-2009 Mercedes E Class W211 2002-2009 Mercedes C Class W203 2000-2007 Lock Door Actuator New Locking Central Vw Brand Left Front Rear Repair Right Seat Mercedes Skoda Class Mechanism Kit

Simply install our improved design replacement springs and restore your locks for good, full instructions are included to guide you through this process.





Produced to the finest tolerances for the perfect fit

Spring, MERCEDES C E CLK CLASS W203 W211 W209 DOOR LOCK ACTUATOR REPAIR KIT 4 SPRINGS Part Numbers: 2037200135 203720043 2037300135 2037300235 2037200335 2037202035 2037300335 2037300435 2037201935 2037200235 2117300535 2117300635 2117200335 2117200435 2117300935 211730103 2117200535 2117200635 2117300735 2117300835 2117200735 2117200835 2117301135 2117301235 2117200935 21172010355 2117201335 2117201435 2117201135 2117201235 Mercedes CLK W209 A209 2002-2009 Mercedes E Class W211 2002-2009 Mercedes C Class W203 2000-2007 Lock Door Actuator New Locking Central Vw Brand Left Front Rear Repair Right Seat Mercedes Skoda Class Mechanism Kit

Made from high quality Stainless Steel (will not deteriorate over time like springs offered by some others) our improved design thicker wound springs will restore your lock and will not deteriorate over time like the OEM part does, save the cost of a replacement actuator that will just fail again.



Complete Kit

Mercedes W203 W211 W209 Door Lock Repair Kit Actuator Springs



Spring, MERCEDES C E CLK CLASS W203 W211 W209 DOOR LOCK ACTUATOR REPAIR KIT 4 SPRINGS Part Numbers: 2037200135 203720043 2037300135 2037300235 2037200335 2037202035 2037300335 2037300435 2037201935 2037200235 2117300535 2117300635 2117200335 2117200435 2117300935 211730103 2117200535 2117200635 2117300735 2117300835 2117200735 2117200835 2117301135 2117301235 2117200935 21172010355 2117201335 2117201435 2117201135 2117201235 Mercedes CLK W209 A209 2002-2009 Mercedes E Class W211 2002-2009 Mercedes C Class W203 2000-2007 Lock Door Actuator New Locking Central Vw Brand Left Front Rear Repair Right Seat Mercedes Skoda Class Mechanism Kit



Will Repair

- 2x Right hand lock OS(front and back) and
- 2x Left hand lock NS(front and back)


You will receive

- 4x Replacement stainless steel
   improved design springs

- 1x Installation Tool

- Full Install Instructions



Vehicle Compatibility

ARE YOU DRIVING AN AFFECTED VEHICLE?



Models Affected

Make

Model

Year (YY)

Mercedes 	 C Class W203

Mercedes

C Class W203

2000-2007

Mercedes  	 E Class W211

Mercedes

E Class W211

2002-2009

Mercedes  	   CLK W209 A209



Mercedes



CLK W209 A209



2002-2009





Part Numbers:

2037200135 2037200435 2037300135 2037300235 2037200335 2037202035 2037300335 2037300435 2037201935 2037200235 2117300535 2117300635 2117200335 2117200435 2117300935 2117301035 2117200535 2117200635 2117300735 2117300835 2117200735 2117200835 2117301135 2117301235 2117200935 2117201035 2117201335 2117201435 2117201135 2117201235

FAQ:

Q: Will these springs break again, is this a service part?
A: No, our item is improved in design and material and is designed to last the life of the vehicle.

Q: Will this cure the popping lock problem?
A: Yes!

Q: We repair these all the time, can we buy just the springs?
A: Of course please phone us 01843 446643




FAQ

INSTRUCTIONS






Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door

Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door


Step 1: Remove door trim

Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door

Remove speaker.
Remove T20 torx and remove lock cover.
Lever off the cover from the door handle.

Remove the two torx bolts under the handle cover (T25, T30)

Lever off SRS badge and remove Torx beneath.

Lever around the edge of the door trim and lift off.

Pull upwards and forwards on the door trim to remove.

Remove electrical connectors.

Disconnect hook linkage.


Step 2: Loosen window guide

Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door

Peel back insulation to reveal rivets holding window guide.

Drill out two rivets from window guide (for reinstallation you can use our fixings included in our kit)



Step 3: Release actuator

Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door

Remove the 3x T30 Torx screws holding the actuator.

If present remove plastic cover.



Step 4: Remove outer handle

Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door

Remove blanking plate and unscrew T20 torx holding outer door handle.

Remove handle, firstly remove small part of handle released by removing the previous T20 Torx then slide handle in to recess left from this to release from vehicle.



Step 5: Remove actuator

Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Slide actuator out of position and remove.


 Step 6: Replace spring

Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door
Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door

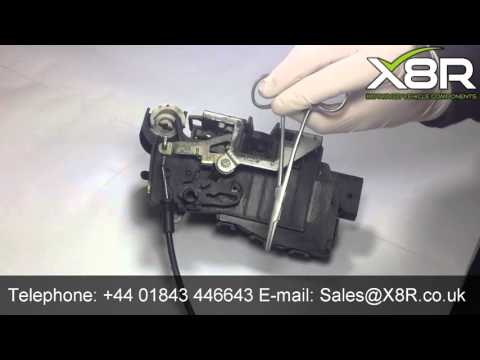

Lever off actuator cover.


Replace spring as shown, remove any remains of old spring if in place.If there are remains of the spring deep in the top recess please remove.

Using the pliers insert the top leg of the spring in to the top recess, if you are unable to do this it is likely that there is still remains of the old spring in place. Attach pliers firmly to the bottom leg of the spring and force in to bottom recess, some force will be required, do not worry the spring will not snap.

Once in place slide bottom leg of spring in to the smallest part of the recess. Test function to make sure spring is seated correctly; test again when reattaching actuator to vehicle.



Step 7: Refitting window guide

Mercedes C E CLK W203 W211 W209 Class Door Lock Actuator Spring Lock Repair Instructions Front Door

For reinstallation the window guide can be riveted back in to position or can be fixed using the fasteners included with our product.



 Installation is carried out at installers risk, if unsure please contact us or a professional, X8R Ltd cannot be held responsible for any adverse result of installing this product or any injuries caused by install, if in doubt ask a professional. All images and texts are copyright X8R Ltd 2013.








Mercedes C E CLK Class Door Lock Actuator Spring Lock Repair



MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT

The Springs within the door lock actuator mechanisms deteriorate over time, the OEM spring is made from cheap metal which wears quickly, this wear leads to the symptoms noted above.

Simply install our improved design replacement springs and restore your locks for good.

Made from high quality Stainless Steel (will not deteriorate over time like springs offered by some others) our improved design thicker wound springs will restore your lock and will not deteriorate over time like the OEM part does, save the cost of a replacement actuator that will just fail again.

Mercedes C Class W203 2000-2007

Mercedes E Class W2112002-2009

Mercedes CLK W209 A209 2002-2009




Step 1: Remove door trim



MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT

Remove T20 torx and remove lock cover.

Lever off the cover from the door handle.

Remove the two torx bolts under the handle cover (T25, T30)





Step 2: Remove door trim




MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT

Lever around the edge of the door trim and lift off.

Pull upwards and forwards on the door trim to remove.

Disconnect hook linkage.

Remove insulation to access actuator.





 Step 3: Release actuator



MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
 Remove the 3x T30 Torx screws holding the actuator.

If present remove plastic cover.



 Step 4: Remove door handle



 MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT

Pry off plastic cover.

Remove blanking plate and unscrew T20 torx holding outer door handle.

Remove handle, firstly remove small part of handle released by removing the previous T20 Torx then slide handle in to recess left from this to release from vehicle.

Remove the two exposed T20 torx screws which will release the bearing clamp.



Step 5: Remove foam block



MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT

Remove foam block, this sits in front of actuator preventing removal.

This consist of two blocks as shown these slide togther, slide the two blocks apart and remove.




Step 6: Remove bearing clamp


MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT

Remove bearing clamp.




Step 7: Remove actuator



MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT

Slide actuator out of position and remove.




Step 8: Fit replacement spring



MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT
MERCEDES C E CLK CLASS DOOR LOCK ACTUATOR REPAIR KIT

Lever off actuator cover.

Replace spring as shown, remove any remains of old spring if in place.

If there are remains of the spring deep in the top white recess it will be hard to remove, you will need to drill this out from directly above using a 1mm drill piece.

Using the pliers insert the top leg of the spring in to the top white recess, if you are unable to do this it is likely that there is still remains of the old spring in place, if so please drill these out as noted above.

Attach pliers firmly to the bottom leg of the spring and force in to bottom recess, some force will be required, do not worry the spring will not snap.

Once in place slide bottom leg of spring in to the smallest part of the recess. Test function to make sure spring is seated correctly; test again when reattaching actuator to vehicle.



Installation is carried out at installers risk, if unsure please contactus or a professional, X8R Ltd cannot be held responsible for any adverse result of installing this product or any injuries caused by install, if in doubt ask a professional. All images and texts are copyright X8R Ltd 2013.
