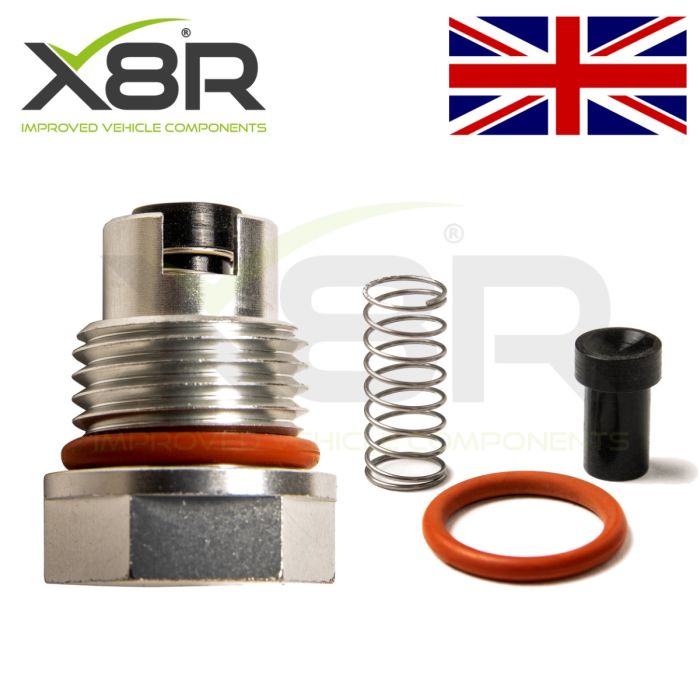

Hitachi Air Suspension Compressor Non-Return Valve Repair Kit

Name: Hitachi Air Suspension Compressor Non-Return Valve Repair Kit
SKU: X8R0230
Price: 23.99 GBP
Availability: InStock

£23.99 £19.99

In stock

SKU

X8R0230

For dispatch on 22/01/2026, order this item in the next

Fill in your delivery details to check available shipping options and calculate rates for this product

Country

Zip/Postal Code

Skip to the end of the images gallery

Hitachi Air Suspension Compressor Non-Return Valve Repair Kit

Skip to the beginning of the images gallery

More Information

More Information

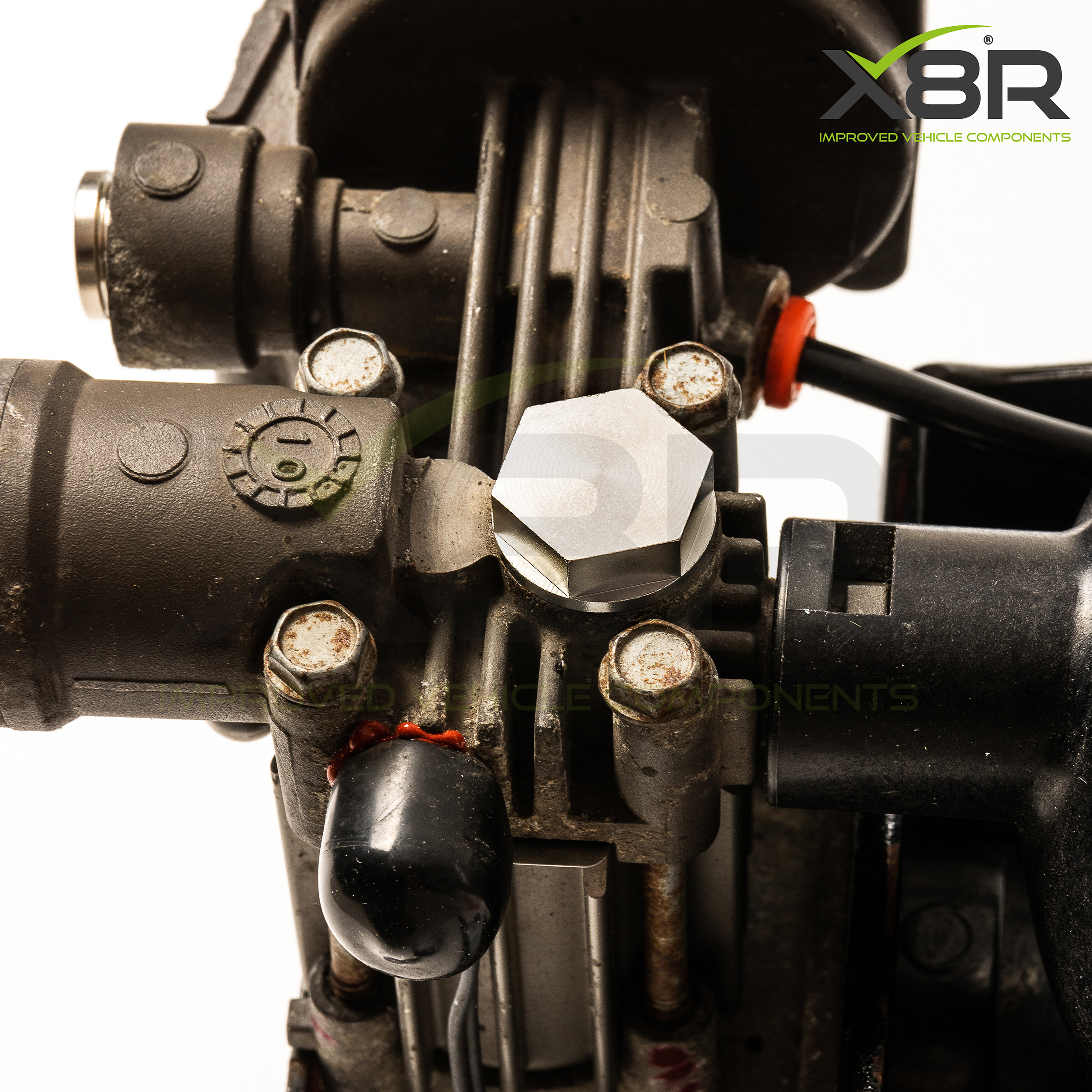

Ebay Text 2	Land Rover Discovery 3 4 Range Rover Sport Air Compressor Non-Return Valve Repair Kit SYMPTOMS OF FAULT Is your vehicles air suspension rising slowly, noisily, or perhaps failing to rise at all? EAS Amber light lit? Fault code C1A20, C1A1364, C50, or C1A20-64 showing? One or more of these errors: “Suspension error only normal height available” “Suspension fault; pressure not rising quick enough” Or “Pressure does not decrease when venting gallery”? THE FAULT The piston seals within your vehicles EAS air compressor are likely worn, filters saturated and the dryer end cap failing reducing output significantly. The likely cause of the faults noted above and most common cause is a worn piston and glide ring within the air suspensions compressor unit. Coupled with saturation of the filters in the compressors drier unit. This results in reduction of compressor output and triggers vehicle faults as well as extending the time taken to lift the vehicle. The original design for the dryer end cap was poor and cracks can develop around the air line collets causing leaks and vehicle faults. However, whilst refurbishing the compressor, the components within the non-return valve (also known as the delivery valve) get lost or break. The plunger within the valve commonly deteriorates and leak, causing the compressor to leak internally. Also, the screw itself often becomes damaged upon removal. THE SOLUTION Fit our replacement non-return valve parts whilst refurbishing your compressor to prevent further issues Save yourself time and headache by purchasing our non-return valve repair kit. We offer a full kit comprising of all components within the non-return valve, including a replacement plunger, screw, spring and o ring. All direct replacements for the OEM components. UK stock Constructed out of high quality materials to last the lifetime of your vehicle Next day delivery available OEM design Land Rover Discovery 3 4 Range Rover Sport L322 Air Compressor Piston Seal Repair Installation Instructions - YouTube Video will open in a new window [isdntekvideo] Download Piston Seal Instruction Guide Land Rover Discovery 3 4 Range Rover Sport L322 Air Compressor Filter Repair Installation Instructions - YouTube Video will open in a new window [isdntekvideo] Download Filter Kit Instruction Guide VEHICLES AFFECTED Land Rover Discovery MK3 2005 to 2009 Land Rover Discovery MK4 2009 to 2012 Ranger Rover Sport 2005 to 2013 Range Rover L322 2006 to 2009 Original Hitachi Compressor Only These collets will only repair the original Hitachi compressor illustrated above. If the compressor has been changed in vehicles life to a different compressor our kit will not repair this. It is worthwhile checking the compressor is as illustrated to the left (see instructions on how to access compressor) Associated part numbers, our kit will only repair Hitachi compressor. RQG000017 RQG000018 RQG000019 RQL500040 RQG500060 RQG500061 RQG500062 RQG500070 QG500071 RQG500072 RQG500080 RQG500090 RYG500160 LR023964 LR010376 LR045251 LR044360 LR01530 LR015303 UUB504700 VUB504700 YOU WILL RECEIVE 1 x Non-return valve screw 1 x Spring 1 x Plunger 1 x O ring
